Protoplanetary disks are the birthplaces of planets. A few disks have been observed around young protostars that are still embedded in their natal envelopes. This suggests that these disks form early in the evolution of the protostars. Howver, the details of their formation are unclear: how is the angular momentum transported within the disk, and what is the impact of the envelope gas on the early evolution of the disk?
One way to answer to questions is to perform numerical simulations. However, this is a difficult task, due to the wide range of physical scales involved: simulations much achieve sufficient resolution in the simulations to capture the fine details of the accretion process, while also covering several thousand astronomical units (au), the typical size of a protostellar envelope. Of course, the highest the spatial resolution, the longest the computation time. Therefore, a trade-off must be made between the spatial resolution and the integration time, that is the duration of the simulation.
Recently, Jonah Mauxion, Geoffroy Lesur and I have tackled this problem by running simulations on the Jean Zay supercomputer. This supercomputer has a hybrid architecture, featuring both CPUs (central processing units) and GPUs (graphics processing units). GPUs are typically a hundred time faster than CPUs, but they require tailored codes in order to be fully exploited. Jonah used the Idefix code, written by Geoffroy. Idefix is a finite-volume magnetohydrodynamical (MHD), 3D code based on the Kokkos library, which allows to run it on almost any architecture. Jonah added a self-gravity solver to the code, and we also included non-ideal magnetic diffusivities to take account the effects of the magnetic field on the disk formation.
Indeed, the magnetic field can have a significant impact on the disk formation. If the ionization fraction – the ratio between the abundance of charged species that of neutrals – is large enough, the magnetic field lines become “frozen” into the gas, and the magnetic field in the central regions of the protostar will increase as the gas collapses onto the central object. This creates magnetic tension, known as magnetic braking, which can prevent disk formation. However, in a weakly ionized gas, the magnetic field can decouple from the gas by the diffusion of neutrals relative to the charged species. These processes are known as Ohmic diffusion, ambipolar diffusion, and the Hall effect. To take these effects into account, one must compute the ionization fraction of the gas, but also the abundances of the main charge carriers. For this, we ran the Astrochem code to compute the steady state abundances of the main charge carriers as a function of density and temperature. We then computed the corresponding magnetic diffusivities, which Idefix uses to model the gas dynamics.

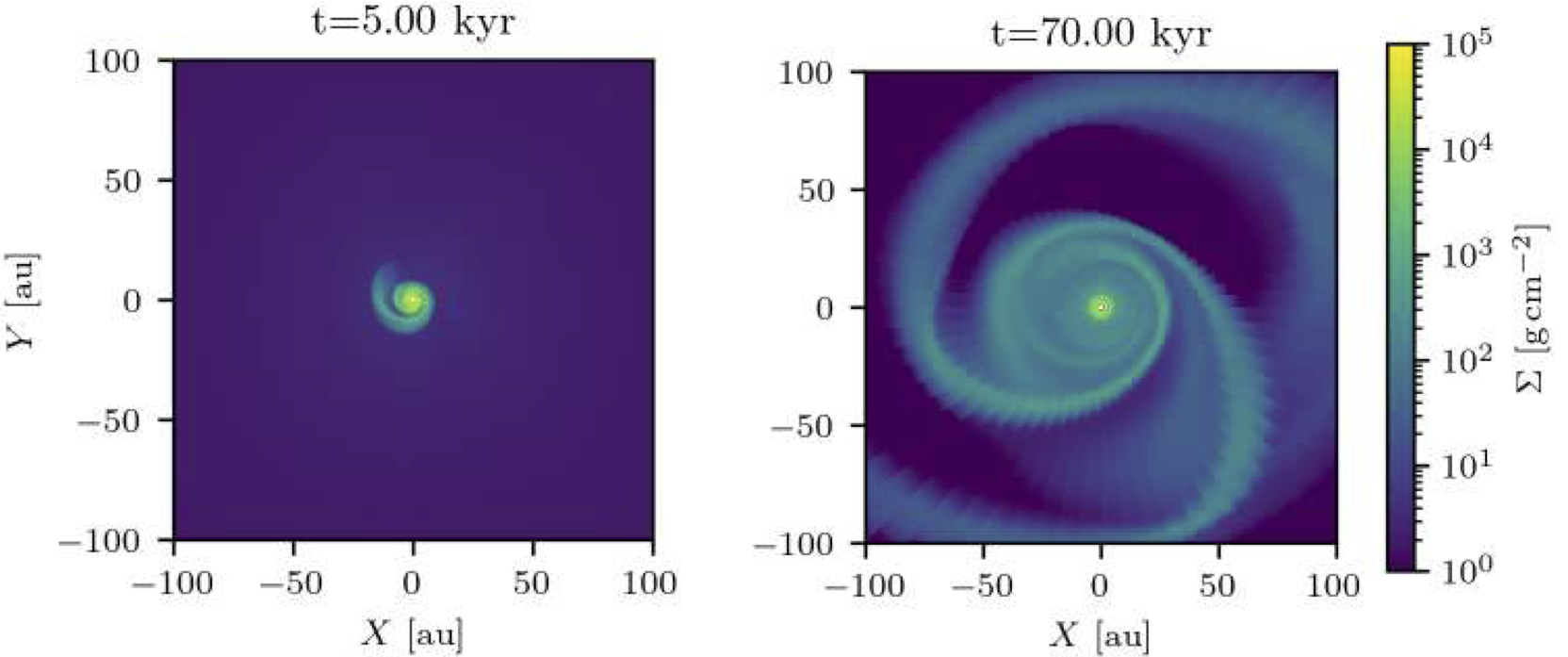

Figure 1: Gas surface density, in the disk equatorial plane, as predicted by the simulation at two epochs. The left panel corresponds to t = 5,000 yr, where t = 0 yr marks the formation of the protostar. The right panel correspond to t = 70,000 yr. From Mauxion, Lesur & Maret (2024).
With this setup, Jonah simulated the secular evolution of a prestellar core, from the onset of the gravitational collapse up to 100,000 years after the formation of the protostar (i.e. the first hydrostatic core), with a spatial resolution of 0.02 astronomical units (au). This is the longest and highest-resolution simulation of this kind so far. In Figure 1, we show the results of these simulations, 5,000 yr and 70,000 yr after the formation of the protostar. At t = 5,000 yr, we observe a small (radius ~ 10 au) protostellar disk in Keplerian rotation. This disk is fed by a “pseudo-disk “ of a few hundred au, in which the magnetic braking is significant, which limits the accretion onto the disk. The disk itself is gravitationally unstable, as indicated by the presence of small spiral. It continues to grow until is becomes fully unstable. At t = 70,000 yr, we observe a larger disk (radius ~ 60~au) featuring many spirals arms. The disk size remains constant until the end of the simulation. In this simulation, the size of the disk is regulated by the gravitational instability (GI): as material accretes onto the disk, it becomes unstable and accretes onto the protostar, thereby limiting the disk growth.

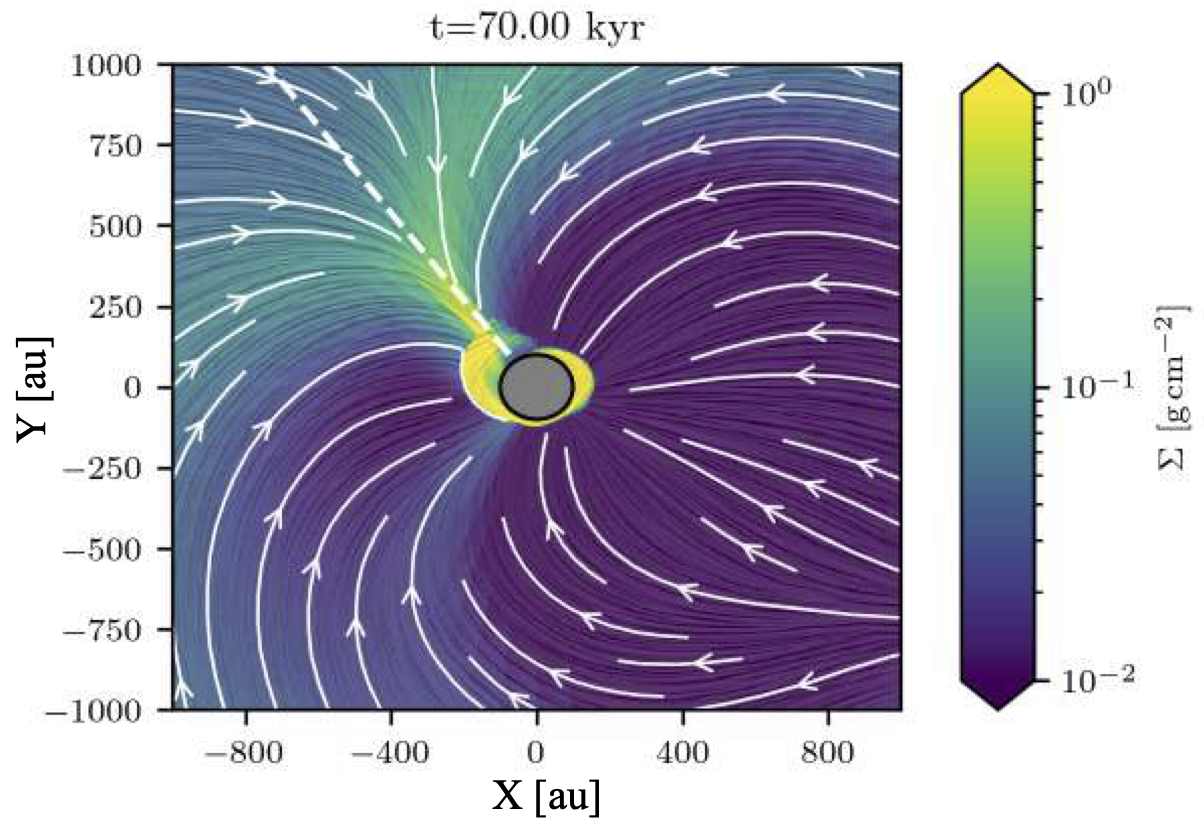

Figure 2: Gas surface density and velocity field, in the equatorial plane, at t = 70,000 yr, shown on large spatial scales. The white arrows indicate the equatorial velocity field. From Mauxion, Lesur & Maret (2024).
Another interesting prediction from this simulation is the presence of streamers. Figure 2 shows the gas surface density at t = 70,000 yr on large spatial scales (1000 au). We observe that the accretion is not isotropic, but occurs preferentially in the direction indicated by the dashed line in the figure. This streamer constitutes an important mass reservoir, and the accretion rate measured along the streamer is comparable to that onto the protostar. This suggests that a significant fraction of the protostar’s mass is assembled through this kind of streamers.
How do the predictions of these simulations compare to the observations of protostellar disks? First, the predicted disk sizes are in good agreement with the sizes of disks observed around young protostars. Streamers have also been observed around these protostars. However, spirals are not observed in protostellar disks, unlike in more evolved protoplanetary disks. One possible explanation for this discrepancy is that the continuum emission from these disks is optically thick, which prevent us from observing the spirals. To test this hypothesis, one would need to post-process the results of the simulations with a radiative transfer code. This will be the purpose of a future study.
The paper “Modeling the secular evolution of embedded protoplanetary discs” by Mauxion, Lesur & Maret is published in Astronomy & Astrophysics.
